Nordmende Tannhäuser

goldenmelodyradios

Year: 1965
Valves / Tubes 12: ECC85 ECH81 EF89 EBF89 EMM803 EF80 ECC808 ECC808 ECC82 ELL80 ELL80 ECC81
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 8 AM circuit(s) 12 FM circuit(s)
Wave bands Broadcast, 2 Short Wave plus FM or UHF.
Power type and voltage Alternating Current supply (AC) / 110 Volt
Loudspeaker 6 Loudspeakers
Power out 17 W
Dimensions (WHD) 25.7 x 14.5 x 10.7 inch / 653 x 368 x 272 mm
Net weight (2.2 lb = 1 kg) 33.05 lb (33 lb 0.8 oz) / 15.005 kg

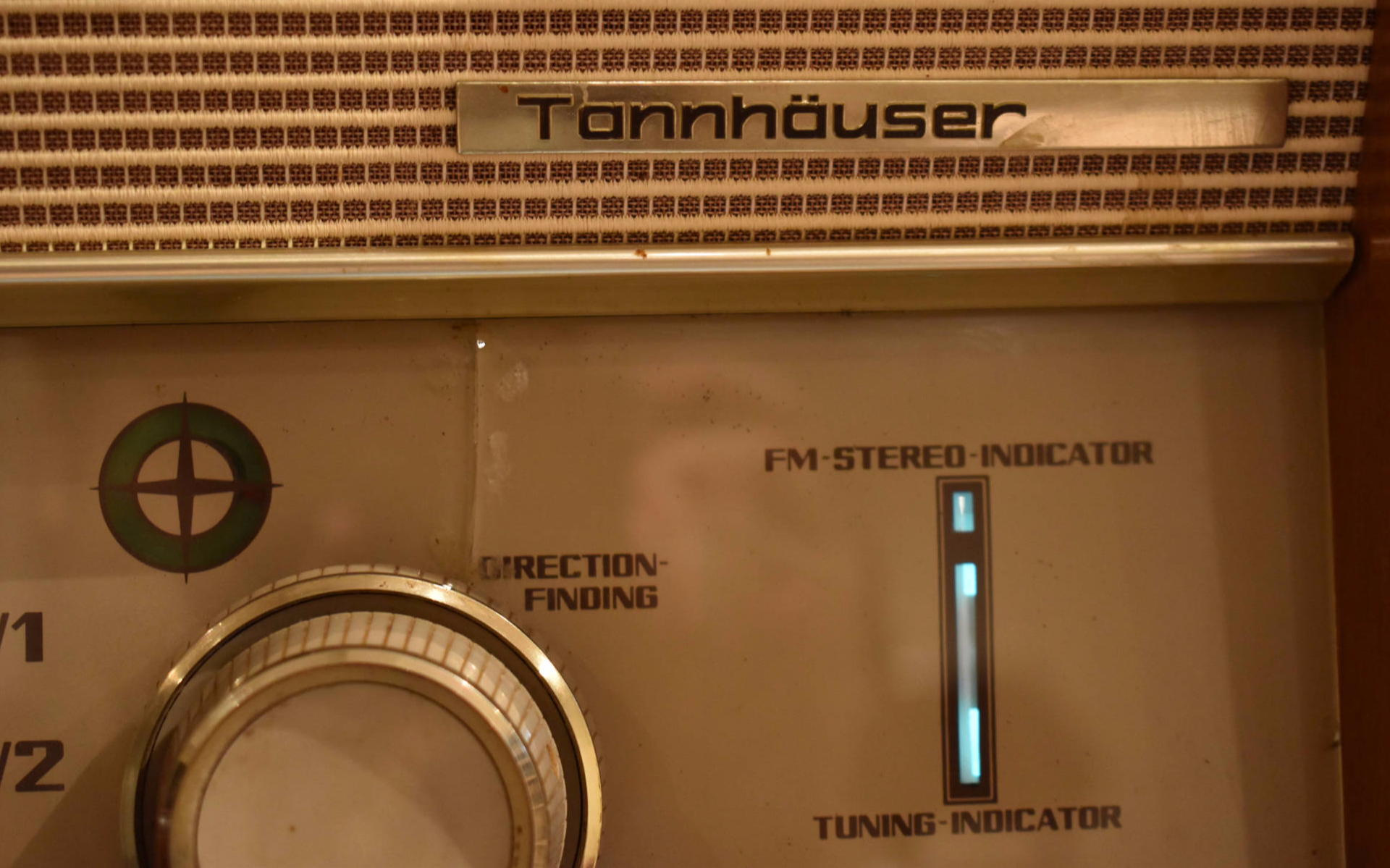

Notes This Nordmende model Tannhäuser C 7004 is an export model with 88-108 stereo FM band, additional SW band from 41-120 m, 2 additional electrostatic speakers and FM stereo decoder installed. 8.5 W output per channel. Diodes: BA110, 11x OA81 2x OA79.

goldenmelodyradios

Tannhäuser (German: [ˈtanˌhɔʏ̯zɐ]; full title Tannhäuser und der Sängerkrieg auf der Wartburg, "Tannhäuser and the Minnesingers' Contest at the Wartburg") is an 1845 opera in three acts, music and text by Richard Wagner, based on two German legends; Tannhäuser, the legendary medieval German Minnesänger and poet, and the tale of the Wartburg Song Contest. The story centers on the struggle between sacred and profane love, and redemption through love, a theme running through much of Wagner's mature work.
